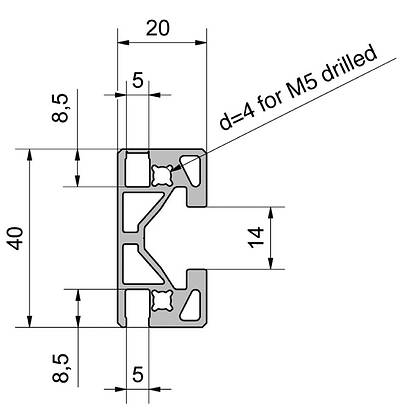

20x40 - Aluminium Profile



Application: Support profile for conveyor side guides.
Frame profile for panel elements with 5 mm thickness.

Thread: The thru holes are for M5 threaded holes.

Material: Aluminum F25, anodized
Rod 6000 mm (usable length)

Weight: 0.84Kg/m

Wx/Wy: 1/3cm3

Ix/Iy: 1/5cm4

Code: 20X40-(length in mm)

Note: Panel size = Opening + 16 mm

CAD-Files: 20X40 - dwg   20X40 - dxf

20X40 - stp

20X40 - sat
