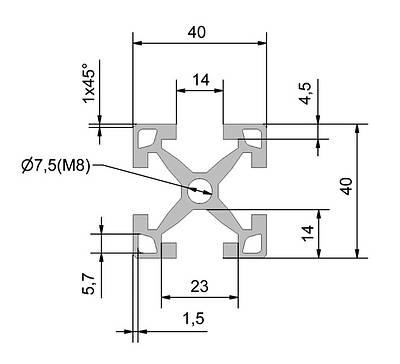

40X40 - Aluminium Profile

Thread: When profile is cut to length, (M8x25) threads can be formed

Material: Aluminum F25, anodized
Rod 6000 mm (usable length)

Weight: 1.54Kg/m

Wx = Wy: 4.4cm3

Ix = Iy: 8.8cm4

Code: 40X40-(length in mm)-S*

*(allows for M8x40 thread to be formed)

CAD-Files: 40X40 - dwg   40X40 - dxf

40X40 - stp

40X40 - sat
