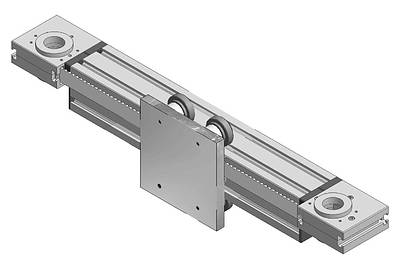

LAP-100 - Linear axis 100x100 with plastic profile bearing rollers

Application: Linear axis with ball bearing plastic rollers in aluminium profle T-Nuts for easy applications.
For moving and conveying of goods, tools and units
with vertically build-in carriage plate.
For the construction of portal systems, Handling
units and vertical lift units.

Technical data: vmax 2 m/s
Md max 70 Nm
s/rotation 200 mm
deffectiv 63,66 mm
Mmin.torque 1,5 Nm
Repeatable accuracy +/– 0,15 mm
Wie can give you advice on static and
dynamic loading

Code: LAP-100-[Hub in mm]
