SF-X - Leveling foot

Application: Adjustable foot for machines and devices with anti-slip sole and ball joint

Material: Glass fiber reinforced plastic, black
Galvanized steel

Code:

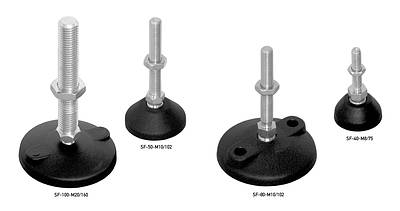

SF-40-M8/75

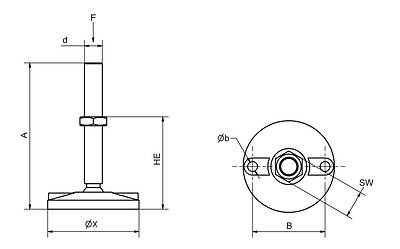

X=40 d=M8 A=75 HE=50 HEmin=40 SW=13 Fmax=1200 N

SF-50-M10/102
X=50 d=M10 A=102 HE=60 HEmin=40 SW=17 Fmax=1200 N

SF-80-M10/102
X=80 d=M10 A=102 HE=60 HEmin=40 SW=17 b=9 B=54 Fmax=3000 N

SF-100-M20/160
X=100 d=M20 A=160 HE=100 HEmin=55 SW=28 b=9 B=74 Fmax=5000 N

CAD-Files:

SF-40- dwg

SF-50 - dwg

SF-80 - dwg

SF-100 - dwg

 SF-40- dxf

SF-50 - dxf

SF-80 - dxf

 SF-100 - dxf

SF-40 - stp

SF-50 - stp

SF-80 - stp

SF-100 - stp

SF-40 - sat

SF-50 - sat

SF-80 - sat

SF-100 - sat
