G-40 - Elbow

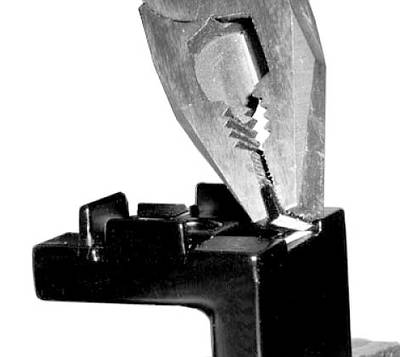

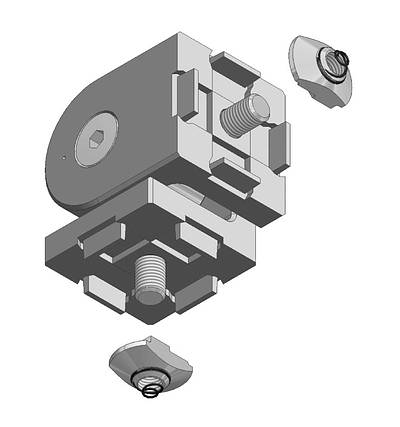

Application: Adjustable angle connection (-90 ° to +90 °); installation in 40 grid on the front side profile; installation in 40's and 50's-grid in the longitudinal groove; attachment to flat surface possible by breaking out the center holes.

Material: Cast aluminum, coated aluminum, galvanized steel

Weight:

G-40: 219 g
G-40-K *: 270 g

Code:

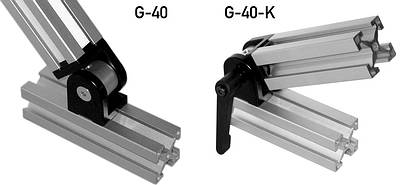

G-40
G-40-K

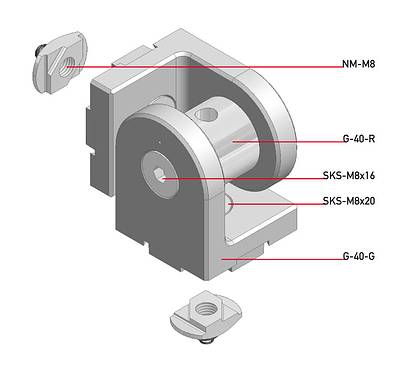

* G-like 40, but with clamping lever (G-40-KH) instead of SKS-M8x16

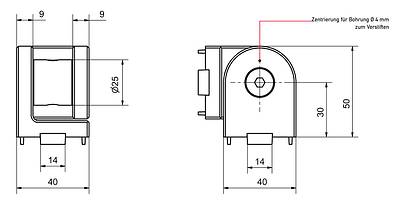

CAD-Files: G-40 - dwg   G-40 - dxf

G-40 - stp

G-40 - sat
