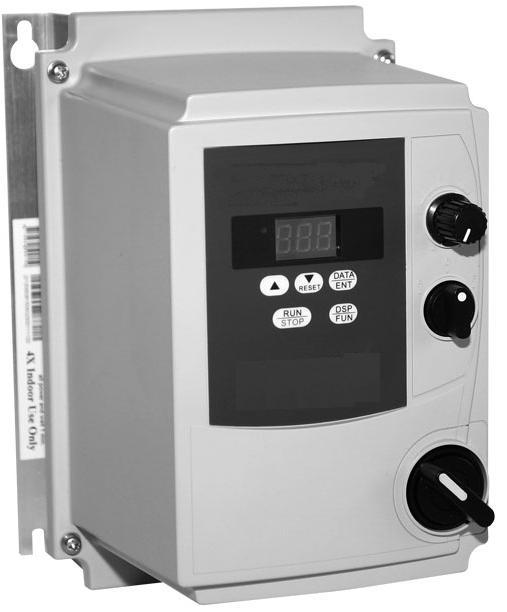

Variable Speed Drive

Application: For motor speed control, Protection Class IP65

Code:

VSD-01-S = 0.2Kw single phase

VSD-03-S = 0.4Kw single phase

VSD-05 -S= 0.75Kw single phase

VSD-07-S = 1.5Kw single phase

VSD-09-S = 2.2Kw single phase

Contact us for information on 3 phase units if required.

Details:

Power Range (single phase)
0.2 - 0.75kW 1-Phase 200 - 240V / 50 - 60Hz (+10,-15%)
1.5 - 2.2kW 1 and 3-Phase 200 - 240V / 50 - 60Hz (+10,-15%)

Power Range (3 phase)
0.75 - 2.2kW 3-Phase 380 - 460V / 50 - 60Hz (+10,-15%)

Type of Control
V/f control with Torque Gain and Selectable Patterns

Overload Capacity
150% for 60s

Switching Frequency
4-16 kHz

Enclosure
IP65

EMC Filter
Standard Integrated A Class (EN 61800-3)

Main Standard Hardware features
Integrated braking module
DC link connection Inverter temperature monitoring
1 Analog Input (V or I selectable)
4 Digital Input (programmable multifunction)
1 Analog Output (voltage linear)
1 Relay output (programmable multifunction)

Keypad
Integrated standard

Main Functions
I2t Motor temperature monitoring
DC braking injection
Selectable Volt on Hz characteristic
JOG frequency
Selectable Auto-restart
Selectable stop method
Automatic alarm reset
Alarm history
Momentary power loss prevention
Stall prevention
Output Short-Circuit protection
Grounding fault protection
Heat sink overheat protection
Current limit
