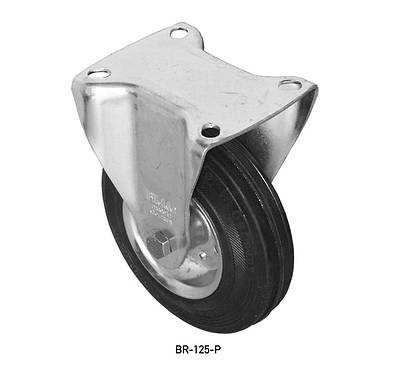

BR-X-P - Plate mounted fixed castor

Application: Castor for carts, conveyors, mobile
Machines and devices.

Mounting: 4 x M8, mounting hole: 80 x 60 mm

Material: Galvanized sheet steel, solid rubber tires

Code:                                                             Code:     Ø Rolle    Height     Weight   F (N)
BR-80-P      80    101            428 g     500
BR-100-P   100    125           747 g     750
BR-125-P   125    150           950 g     1000

BR-80-P - dwg

BR-100-P - dwg

BR-125-P - dwg

 BR-80-P - dxf

BR-100-P - dxf

BR-125-P - dxf

BR-80-P - stp

BR-100-P - stp

BR-80-P - sat
