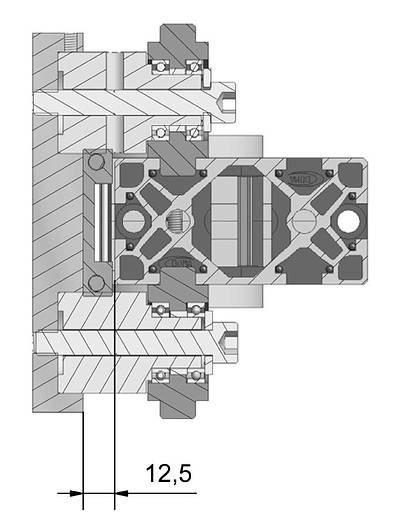

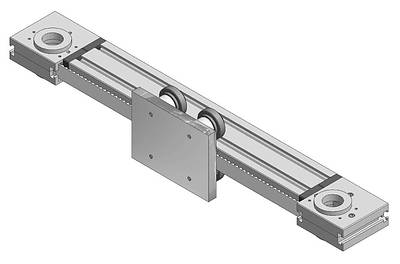

LAP-50 - Linear axis 50x100 with plastic profile bearing rollers

Application: Linear axis with plastic rollers running in aluminium profle T-Nuts for light applications.
For moving and conveying of goods, tools and units
with vertically build-in carriage plate.
For the construction of portal systems, Handling
units and vertical lift units.

Technical data: vmax 2 m/s
Md max 70 Nm
s/rotation 200 mm
deffectiv 63,66 mm
Mmin.torque 1,5 Nm
Repeatable accuracy +/– 0,15 mm
Wie can give you advice on static and
dynamic loading

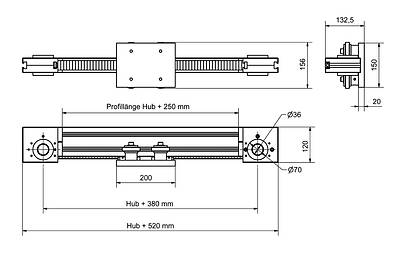

Code: LAP-50-[Hub in mm]
