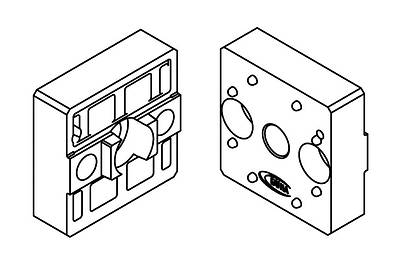

V-50 - Grid 50 Connector

Application: 90 degree connection of profiles in grid 50.
50x50: 1 pcs V-50
50x100: 2 pcs V-50 or V-50-E
100x100: 4 pcs V-50-E

Material: Die-cast zinc coated

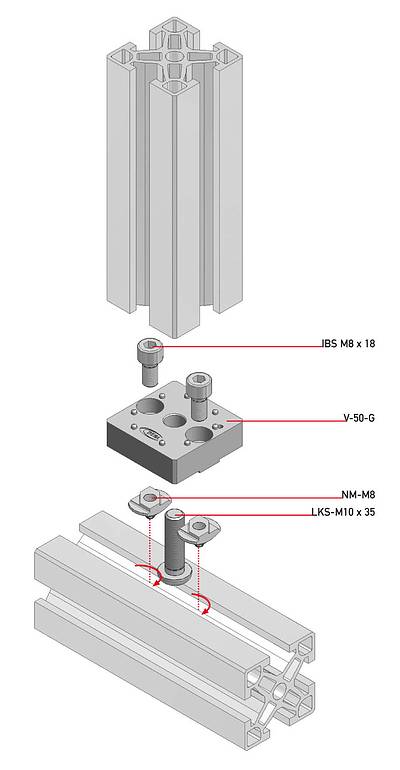

Set V-50:

2x IBS M8x18 DIN 912
1x V-50-G
1x LKS M10x35 ISO 7380
2x NM-M8


Set V-50-E:

1x IBS M8x18 DIN 912
1x V-50-G
1x LKS M10x35 ISO 7380
1x NM-M8

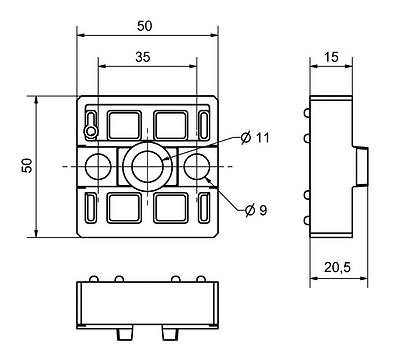

CAD-Files: V-50 - dwg   V-50 - dxf

V-50 - stp

V-50 - sat
