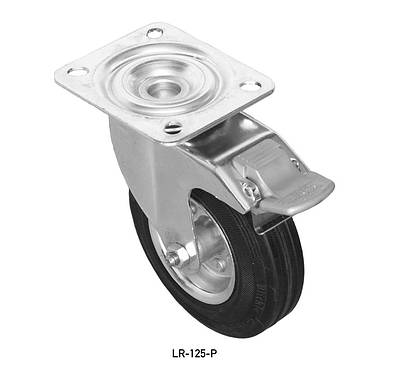

LR-X-P - Plate mounted castor with brake

Application:Castor for carts, conveyors, mobile
Machines and devices.

Mounting: 4 x M8, mounting hole: 80 x 60 mm

Material: Galvanized sheet steel, solid rubber tires

Code:                                                                   Code:     Ø Rolle    Height     weight    F (N)
LR-80-P      80         101        703 g      500
LR-100-P    100        125        904 g      750
LR-125-P    125        150        1155 g    1000

LR-80-P - dwg

LR-100-P - dwg

LR-125-P - dwg

 LR-80-P - dxf

LR-100-P - dxf

LR-125-P - dxf

LR-80-P - stp

LR-100-P - stp

LR-125-P - stp

LR-80-P - sat
