KNBD-40/50/XXX - Support plate for T connections

Application: Stiffening of T-connections on 40 and 50 grid profiles.

Material: Steel Galvanised

Weight:

KNBD-40/50/150: 848 g
KNBD-40/50/250: 2260 g

Code:

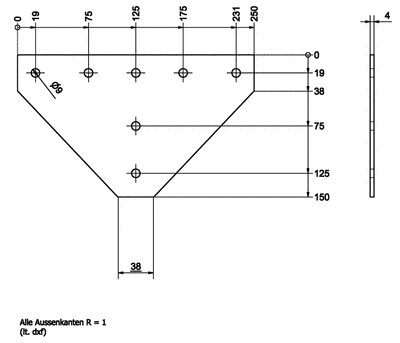

KNBD-40/50/150 for 250mm plate

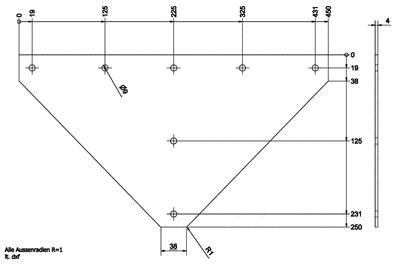

KNBD-40/50/250 for 450mm plate

CAD-Files:

KNBD-50-150 - dwg

KNBD-50-250 - dwg

 KNBD-50-150 -dxf

KNBD-50-250 - dxf

KNBD-50-150 -stp

KNBD-50-250 -stp

KNBD-50-150 - sat

KNBD-50-250 -sat
