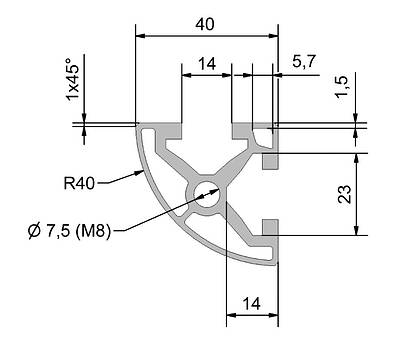

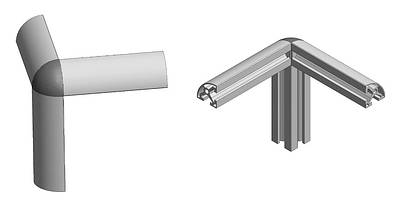

40X40-K - Aluminium Profile

Thread: When profile is cut to length, (M8x25) threads can be formed

Material: Aluminum F25, anodized
Rod 6000 mm (usable length)

Weight: 1.29Kg/m

Wx = Wy: 2.77cm3

Ix = Iy: 6.3cm4

Code: 40X40-K-(length in mm)-S*

*(allows for M8x40 thread to be formed)

CAD-Files: 40X40-K - dwg   40X40-K - dxf

40X40-K - stp

40X40-K - sat
