W-100-F - Angle bracket with one side flat

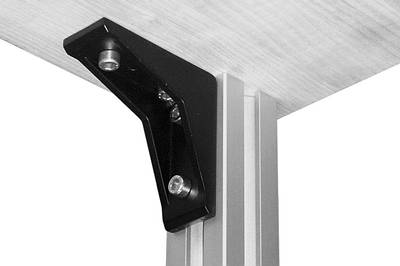

Application: Stable 90-degree connections for profiles;  Connection to base plates. Transversal grid with only 50 possible. Centering possible on one side only of angle.

Material: Die-cast zinc coated; Galvanized steel

Weight: 524g

Code: W-100-F

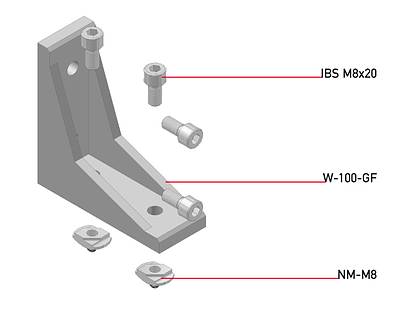

Set:

1 x   W-100-GF
4 x   IBS-M8x20   DIN 912
2 x   NM-M8

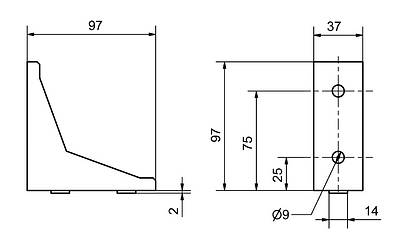

CAD-Files: W-100-F - dwg   W-100-F - dxf

W-100-F - stp

W-100-F - sat
