SWT-X

Application:

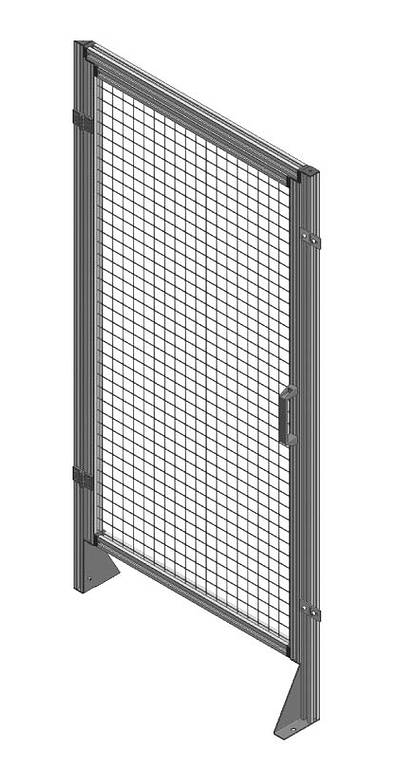

Swivel door for safety applications with an opening
width of X-85mm
X= 500 up to 1200mm
Every swivel door will be delivered completely assembled
(profile, connector, woven mesh, mesh holder, endcaps,
foot plate, connection panels, hinge, handle, ball retainer catch)

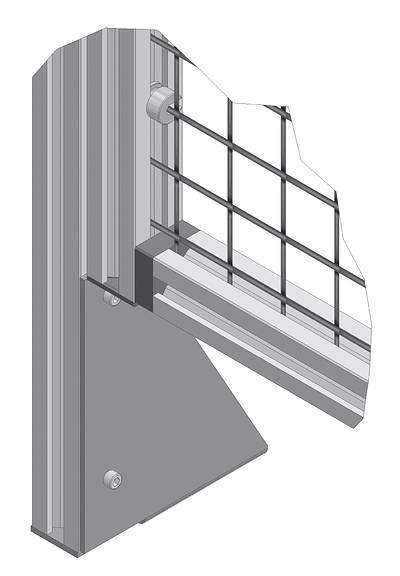

Material:
40x40 aluminium profile
40x40x4 zinc coated steel woven mesh
steel coated foot plate
Code:                                            element width
SWT-1000-L (Griff außen links)         995 mm
SWT-1000-R (Griff außen rechts)      995 mm
SWT-X-L (Griff außen links)                X-5 mm
SWT-X-R (Griff außen rechts)             X-5 mm
Note:
Safety switch or special door interlocks are available
upon request

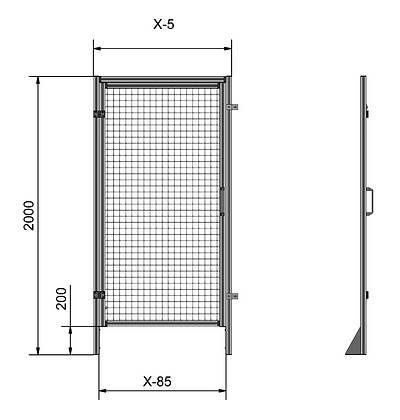

CAD-Files:
