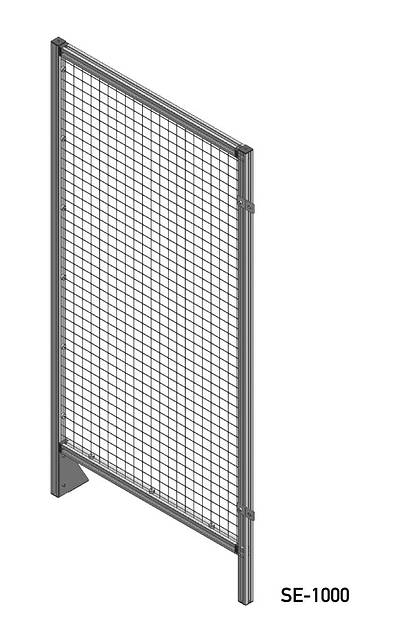

Application: Safety element is available in standard widths and customised widths.

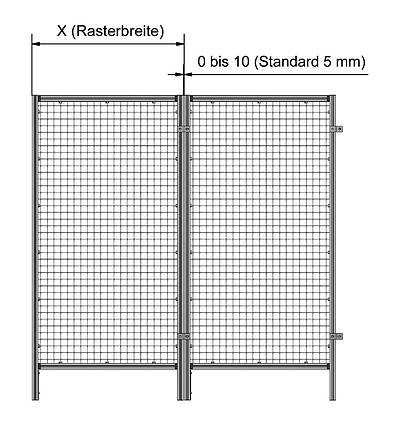

Can be fastened to the floor with 12mm rawl bolt. Can be connected to
the next element with two pieces of VP-40 connection unit.
Every safety element will be deliverd completely assembled (profile,
connector, woven mesh, mesh holder, endcaps, foot plate, connection unit).
Material: 40x40 aluminium profiles 40x40x4 zinc coated steel woven mesh coated steel foot plate

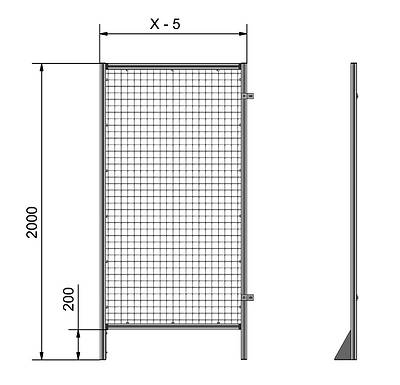

Code: Grid width Element width
SE-500 500 mm 495 mm
SE-800 800 mm 795 mm
SE-1000 1000 mm 995 mm
SE-1500 1500 mm 1495 mm
Note: For the end of a safety fence wall an extra BWS-40-L foot plate is needed.
|
